No loose parts
A stiff, lightweight body printed in carbon-fibre-reinforced filament carries the pedal. The plate lock needs no separate pins, springs or screws.
Pedalboard System
NEBULA
A clear place for your pedals. A considered route for everything underneath.
CNC-machined plywood. Precision-cut aluminium. Finished by hand.
- Working surface
- 635 × 380 mm
- Board weight
- 2.9 kg
- Small batches
- Made in Europe
€429 + VAT
Nebula M + padded gig bag. Introductory offer until 31 October 2026: choose 14 standard mounting plates at no extra cost.
From 1 November: board + bag €429; with the optional 14-plate pack €488 (both + VAT). Offer terms
A small batch of Nebula boards is nearing completion.Ask about availability from this batch. New made-to-order builds: estimated dispatch 6–8 weeks. We confirm your dispatch date before payment.30-day money-back guarantee • Free return shipping across the EU & UK
Meet Nebula
Where new stars are born.
Nebula takes its name from the clouds of gas and dust where new stars form. A place of energy, movement and possibility.
Here, the possibilities come from you. Bring your pedals together, explore new combinations and shape a sound that feels like yours.
Build the rig around your playing.
A poorly organised pedalboard costs you time, introduces failure points and gets in the way of playing. Every decision here — the angle, the routing, the clearance — exists to make your setup faster to build and more reliable on stage.
Pedals you use underfoot go on top, power and always-on units underneath, external connections to the rear panel. Choose Smart Pedal Locking plates to suit your pedals or use conventional fastening. A pack of 14 selected standard plates is included until 31 October 2026; €59 + VAT from 1 November.
Made in small batches
CNC precision.
Hand-finished detail.

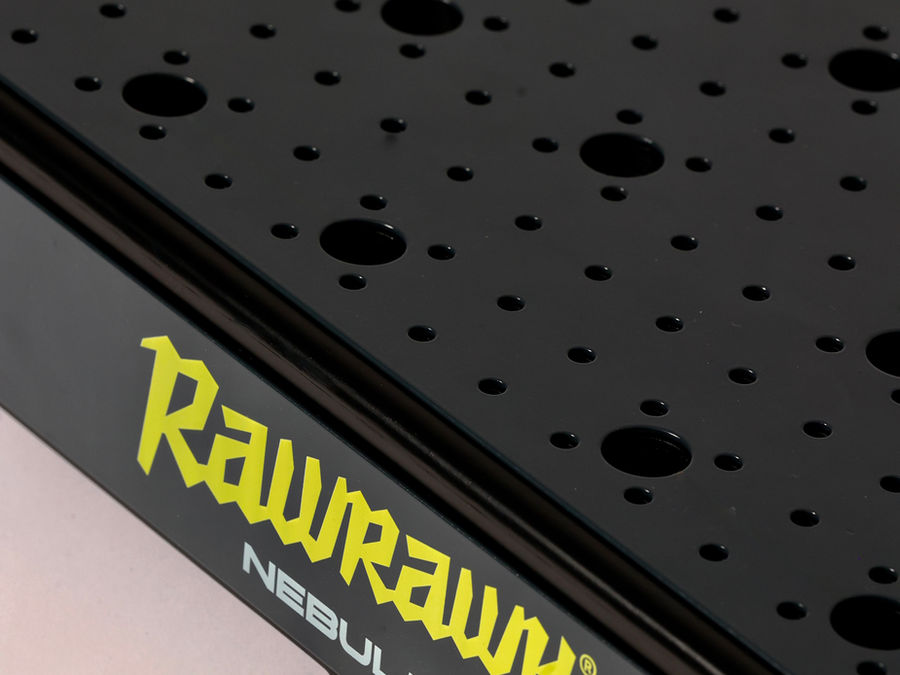

The tools you choose become part of how you play. Nebula combines a machined plywood structure with two aluminium panels, assembled and finished in our family workshop in Northern Portugal.
- CNC-machined plywood
- The shaped structure forms the board’s incline and soft-radius carry handles.
- Two aluminium panels
- Precision-cut and powder-coated, with perforations for mounting and routing, and dedicated openings for rear connections.
- Careful finishing
- Clean edges, a protective coating and double matte varnish bring the materials together into a board made to be handled.

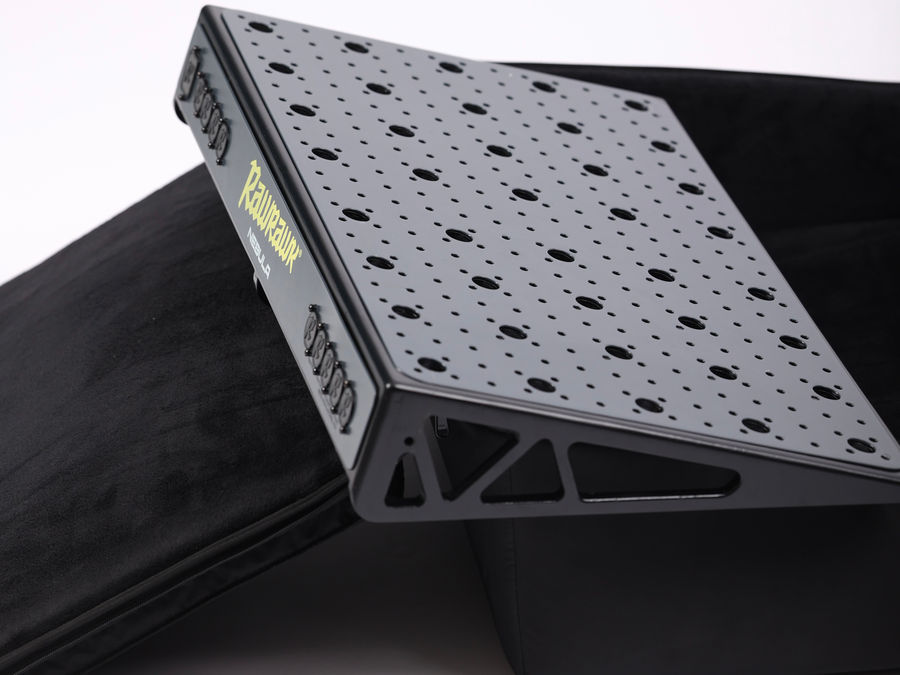

Use the space underneath
The incline creates the most clearance at the rear, tapering towards the front. A low-profile power supply can reach farther forward than a tall pedal.
The Builder checks underside placement using the equipment’s height and mounting thickness, with space reserved for the rear sockets you choose. Measure the actual unit, including knobs and feet, when planning.

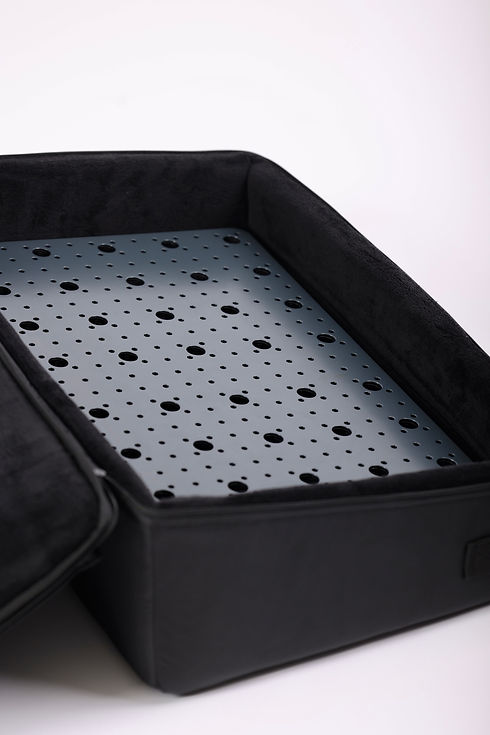

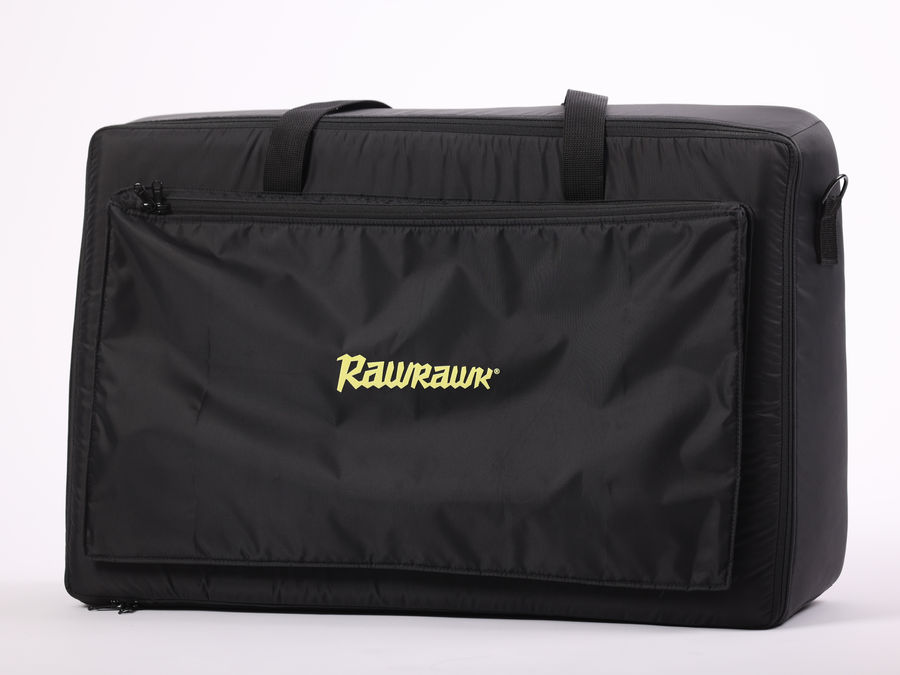

Included with your board
Designed alongside Nebula.
Included with yours.
Your rig holds the sounds you have spent time making your own. The Nebula bag was developed alongside the board, with its fit, materials and finish considered as part of the same product.
- Reinforced, water-resistant fabric
- A substantial outer fabric for the journeys between home, rehearsal and stage.
- Thick, high-density padding
- A padded interior to cushion your setup during everyday transport.
- Heavy-duty zip
- A full opening for packing your board and taking it out again.
Nebula mounting system
Smart Pedal Locking
Mount your pedal once. Move it with its plate. Smart Pedal Locking is designed around removable adhesive strips between pedal and plate, and a mechanical lock into Nebula’s grid. One rear lever releases the assembly, so you can rearrange your rig without detaching the pedal from its plate.
See the full fitting sequence
Align and lower
Align the plate with the board grid and press it gently against its supports.
Slide and lock
Slide downhill — a short, positive travel — until the plate seats and the lever locks automatically.
Release and move
Hold the plate down, lift the rear lever and slide uphill. Lift the pedal and plate out together.
How the pedal attachesRemovable adhesive · accessible pull-tabs
The intended attachment uses adhesive strips that release when stretched. Place them between the pedal base and plate, with their removal tabs accessible at a plate edge. Keep the rear lever and the path for pulling each tab clear.
To rearrange your rig, release the plate from Nebula and move the pedal and plate together. To detach the pedal itself, first take the assembly off the board. Support both parts and slowly pull each tab along the plate surface, following the strip maker’s instructions.
The final strip specification and compatibility with pedal finishes and the printed plate are being checked through physical testing. Read about attachment and removal →

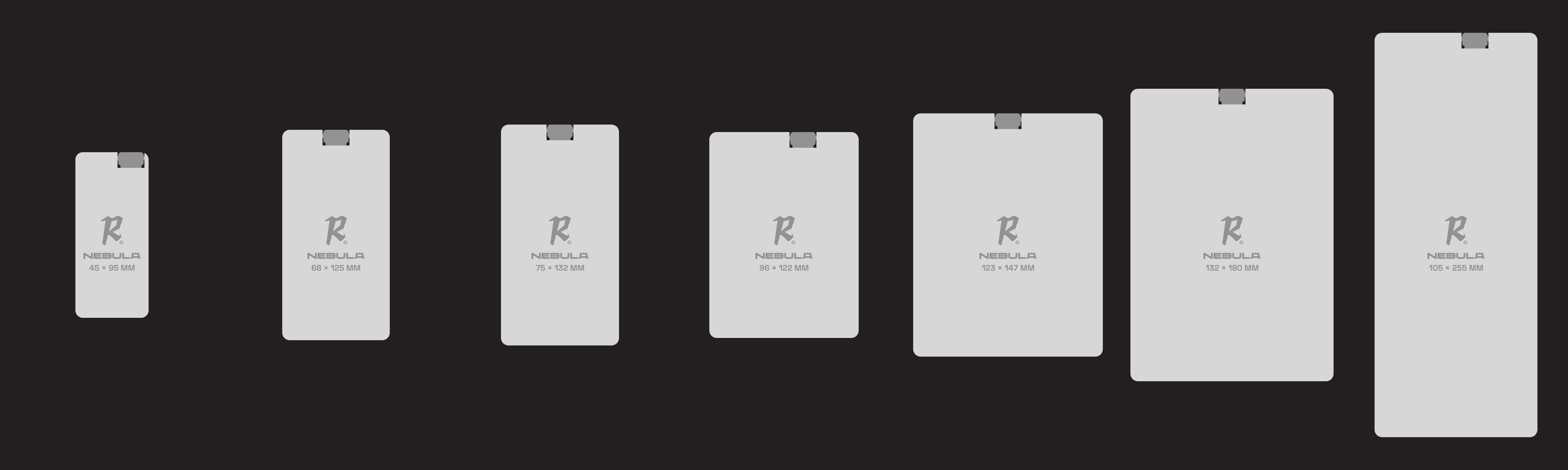

Explore the platesChoose 14 · any mix of standard sizes
Match the dimensions below to your pedals. Every size has one rear release lever, positioned beyond the pedal footprint. Choose any mix of the seven standard sizes, including repeats, for a total of 14 plates. The pack is included until 31 October 2026 and optional at €59 + VAT afterwards. The full-size Quad Cortex plate is not included and can be ordered separately at additional cost.
Tap the image to open the high-resolution view. Scroll sideways on smaller screens →
Mini45 × 95 mm
Compact68 × 125 mm
Boss75 × 132 mm
Double-wide96 × 122 mm
Large123 × 147 mm
XL digital132 × 180 mm
Expression105 × 255 mm
Your plates, your choice: select 14 from Mini, Compact, Boss, Double-wide, Large, XL digital and Expression. Repeat sizes as needed. Two of each is just a suggested starting mix. Included until 31 October 2026; optional pack €59 + VAT afterwards.
Quad Cortex: 290 × 195 mm pedal fit, with dedicated QUAD CORTEX engraving. Not included with the board; available to order at additional cost.
Dimensions describe the pedal fit. The latest plates are 4 mm wider and 16 mm deeper, with room for the release paddle beyond the pedal footprint. Allow for cables and finger access. The image shows the seven standard formats from above, at the same scale.
How the plates are madeBuilt-in lever · soft supports
Easy to identify
Clear engraving and size markings help you choose the right plate and identify it at a glance.
A little give at the board
Soft TPU supports cushion contact with the coated board surface.
A release you can reach
One rear lever serves every size, positioned beyond the pedal footprint. Leave room for your fingers, pedal overhangs and cables.
The board works with conventional pedal fastening too. The gig bag is always included. Choose 14 standard plates at no extra cost until 31 October 2026; optional pack €59 + VAT from 1 November. Order extra plates or a Quad Cortex plate at additional cost.
Ask about additional plates

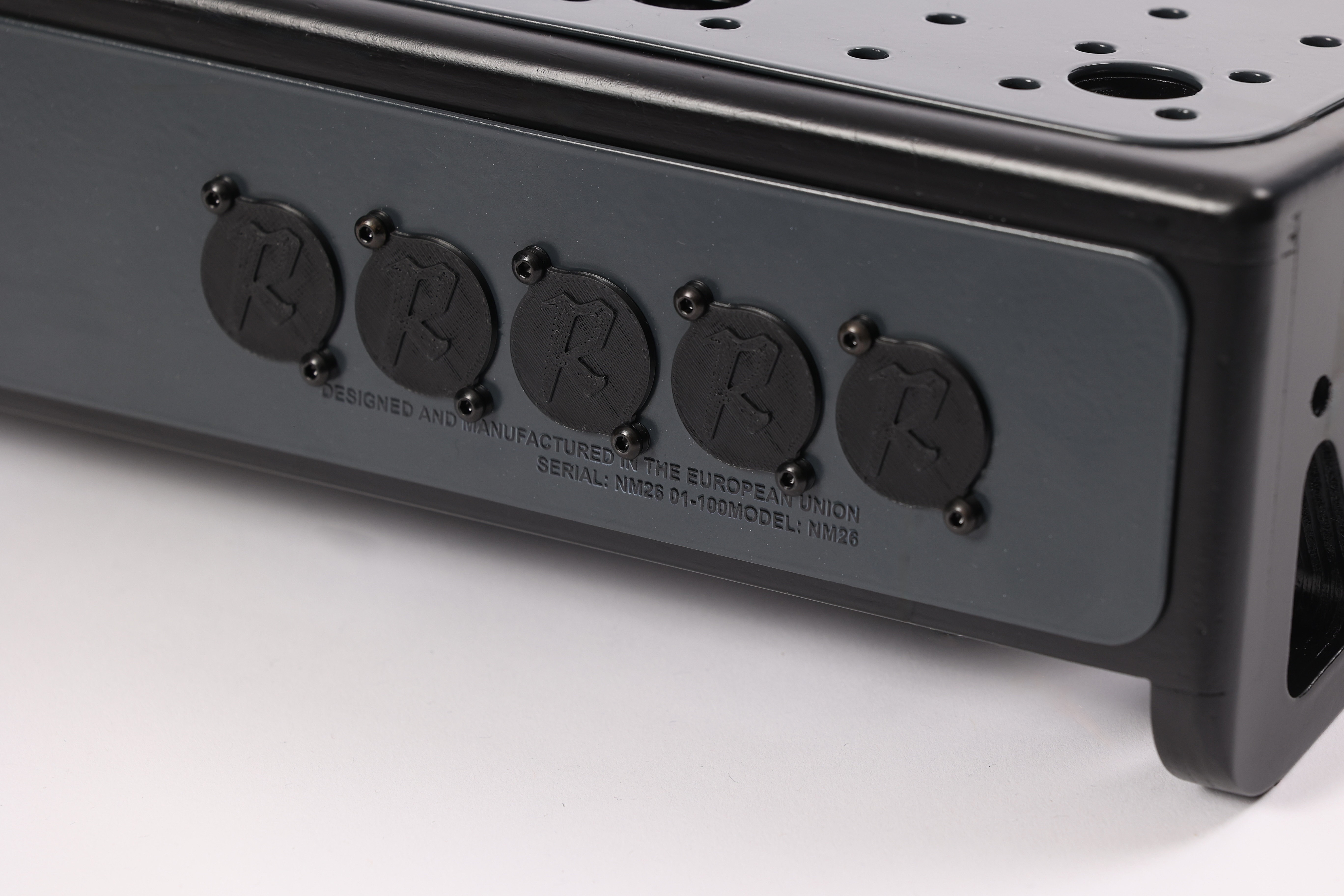

Bring your connections to the back
Nine chassis connector cutouts and a separate IEC opening provide positions for the connections your rig needs. Choose which openings to use; the cutouts do not mean connectors or wiring are included.
Audio, USB or Ethernet: choose connections with a matching mounting pattern, then allow for their hardware and wiring underneath. The Builder lets you switch each position on or off and plan around that space.
Explore your rear-panel options
Jack
XLR
USB-C
USB-A/B
Ethernet
See the connections. Understand the space.
Neutrik examples, internal wiring diagrams and an interactive underside-height guide.
Open the visual connection guide
Drawn to scale
Nebula M dimensions
Working surface 635 × 380 mm (25.0 × 15.0 in) — the same footprint the Nebula Builder uses for planning.
Technical specifications
Nebula — at a glance
| Model | Nebula M |
|---|---|
| Type | Angled pedalboard system |
| Working surface | 635 × 380 mm (25.0 × 15.0 in) — width × depth |
| Base material | CNC-machined plywood structure |
| Surface & front | Precision-cut powder-coated aluminium, perforated for direct or modular plate mounting |
| Pedal mounting | Carbon-fibre-reinforced Smart Pedal Locking plates: choose 14 standard sizes at no extra cost until 31 October 2026; optional pack €59 + VAT afterwards. Extra plates and full-size Quad Cortex plates available at additional cost. Conventional fastening also supported. |
| Geometry | Inclined surface for pedal visibility, foot access & underside clearance |
| Connector cutouts | 9 chassis cutouts for panel-mount connectors + 1 dedicated IEC (AC power) |
| Cable management | Under-board routing via reusable straps or cable ties; clean top surface |
| Included | A purpose-built gig bag with reinforced water-resistant fabric, heavy-duty zip and high-density padding. Introductory offer: 14 selected standard mounting plates included until 31 October 2026. |
| Sustainability | Repurposed aluminium sourced from the construction industry |
| Finish | Premium coating with double matte varnish; soft-radius handles |
| Weight | 2.9 kg / 6.4 lb |
| Build | Small-batch, made in Europe |
| Price | €429 + VAT with gig bag. Until 31 October 2026, 14 selected standard plates are included. From 1 November: optional plate pack €59 + VAT; board, bag and pack €488 + VAT. |
Working surface is the pedal layout footprint (same as Nebula Builder). Weight is for the board itself. Shipping dimensions with gig bag are confirmed with your order. See dimension drawing ↑
Before you order
Make it fit your rig.
The Builder is a useful starting point. Send the saved plan with your enquiry so we can discuss the details together.
Open the BuilderWhat is included with the board?
Nebula M and its purpose-built gig bag. Until 31 October 2026, choose 14 standard mounting plates at no extra cost. From 1 November, the optional pack adds €59 + VAT. Extra plates and the Quad Cortex plate are available at additional cost. Pedals, power supplies and panel connectors are not included.
How does the introductory plate offer work?
Enquiries received by 31 October 2026 (Portugal time) qualify for 14 selected standard plates at no extra cost with each Nebula. We hold the introductory price for 14 days from our written quote. Choose any mix of the seven standard sizes, including repeats. From 1 November, Nebula with its gig bag remains €429 + VAT; the optional 14-plate pack is €59 + VAT, making €488 + VAT together. Quad Cortex plates and other extras are quoted separately.
Do I need the plates?
You can use conventional fastening if you prefer. Smart Pedal Locking plates let you move each pedal and its mounting together. Choose 14 standard plates at no extra cost until 31 October 2026, or add the optional pack for €59 + VAT afterwards. Extra plates and the Quad Cortex plate can be ordered at additional cost.
Can I put a pedal underneath?
It depends on its total installed height and position. Clearance reduces towards the front. Enter height and mounting thickness in the Builder, enable the rear sockets you intend to use, and check the physical setup before fixing it.
Does the Builder guarantee a fit?
It checks a simplified plan and height envelope. Pedal dimensions can be estimates, and cable bends, switches, plate fixings and other three-dimensional details need a final check with your actual equipment.
How do I order?
A small batch is nearing completion. Send an enquiry with your country and setup to ask about availability from this batch. We confirm the configuration, dispatch date and total price before payment. New made-to-order builds have an estimated dispatch of 6–8 weeks. An enquiry does not commit you to a purchase.
A quote for your setup
Get your Nebula quote
Tell us your shipping country and any setup requirements. We’ll confirm what’s included, the delivered price and the expected dispatch date. No commitment to order.
- 1Send your enquiry with product and shipping country.
- 2We confirm your configuration, price including shipping and expected dispatch date.
- 3A small batch of Nebula boards is nearing completion. Ask about availability from this batch; we confirm your dispatch date before payment. New made-to-order builds have an estimated dispatch of 6–8 weeks.
From our family workshop to your rig.
We design, machine, assemble and finish our gear in small batches in Northern Portugal. Speak directly with us about your setup.
